OVERVIEW

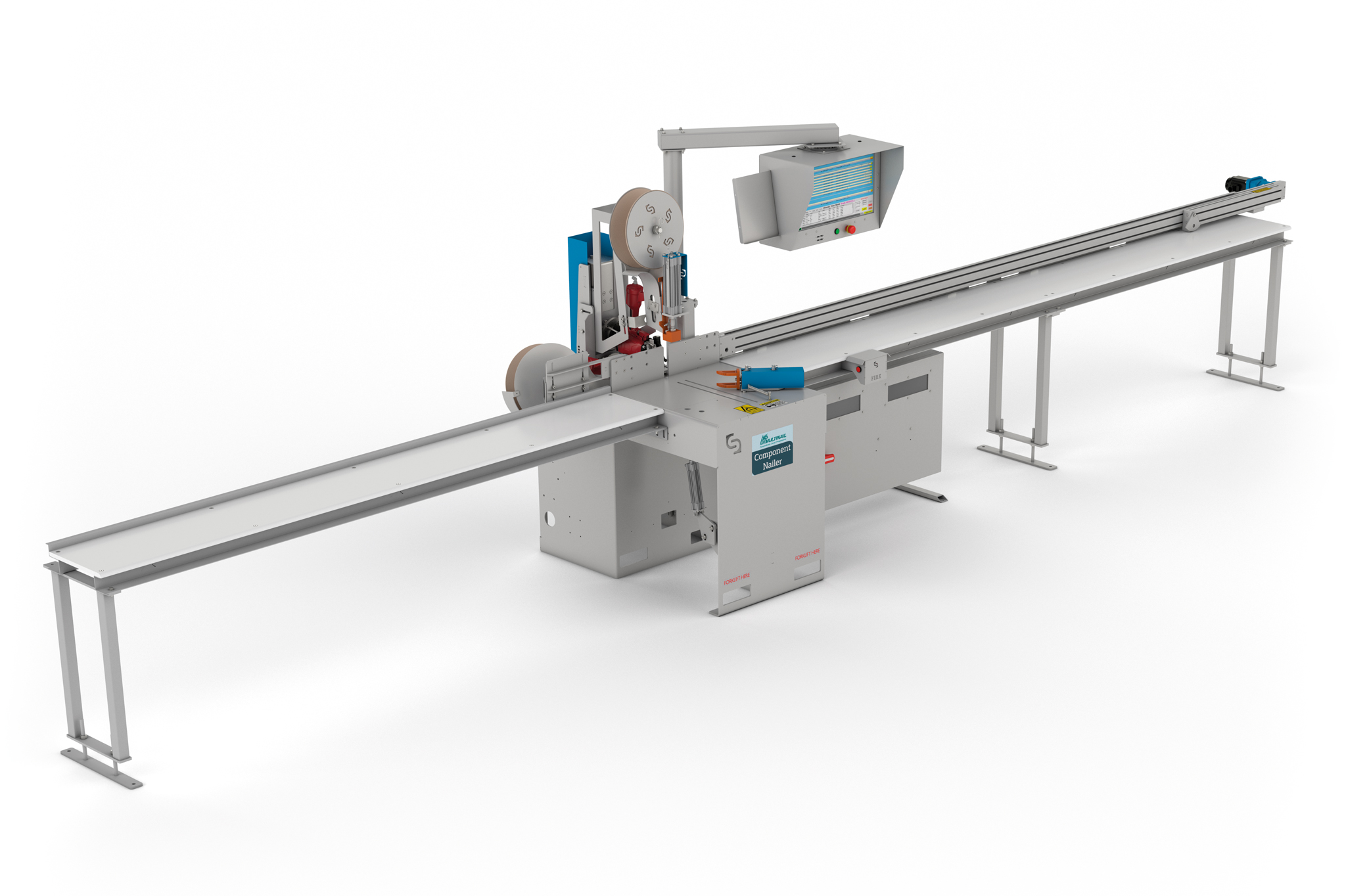

The Component Nailer is a compact, all-in-one system that accurately cuts and nails timber components before frame assembly, delivering consistent, high-quality results while optimising floor space.
Paired with the Curved Conveyor, it maximises production efficiency.
Beyond single noggin-to-stud applications, the Component Nailer can produce complete sub assemblies with multiple attachments, including window heads, overs, sills, and unders – streamlining a labour-intensive stage of frame production.
Automation improves accuracy, build quality, and safety by reducing manual handling and handheld nail gun use.
Pre-manufactured sub assemblies accelerate installation on the wall line, remove bottlenecks, and increase overall production speed – benefit from a more efficient framing process with improved throughput and higher metres per operator.
FEATURES
- Caters from 70mm to 140mm timber
- Automated timber clamping
- Safety isolation of nail gun firing on clamps to make sure timber is present
- Integrated pop up saw that automatically cuts components to precise lengths
- Capability to nail flat and vertical attachment orientations
- Automated 10mm attachment packer
- 2 automated nail guns
- Dust extraction system for a cleaner workspace
- 2 hand safety operation
- High capacity nail coil holders
- Nail usage counter – alerts operator when nails need to be replaced
- Compatible with a wide range of standard industry data exports
- 24″ industrial touch screen
- Factory tested to +/- 0.5mm
OPTIONS
- Left or right hand configuration
- Infeed table lengths – 4800mm or 6000mm
