OVERVIEW

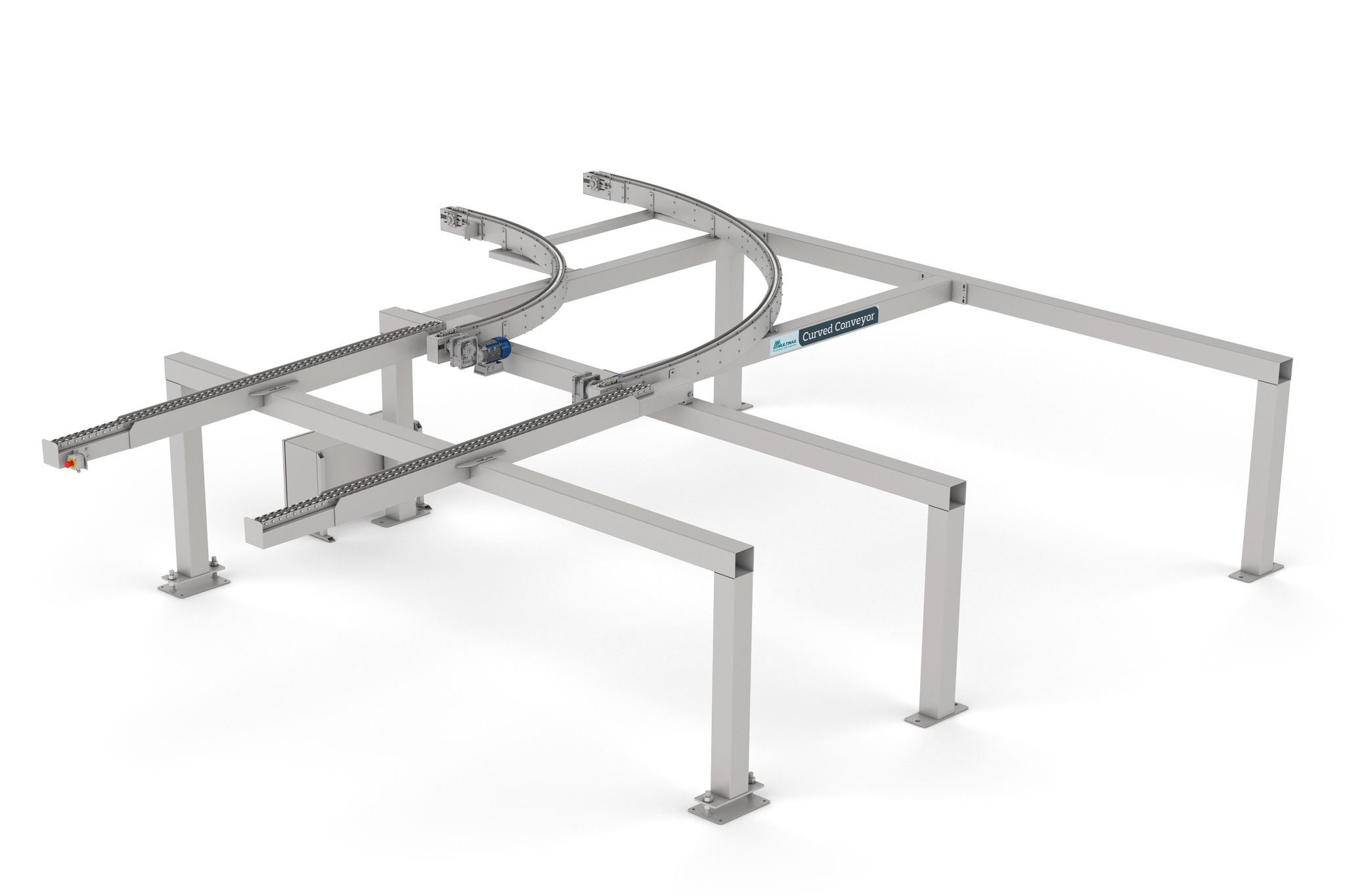

The Curved Conveyor is designed to efficiently transfer studs and minor sub-assemblies from the assembly point to the Wall Extruder or Raked Wall Extruder operator, positioning components for fast, accurate insertion into the wall frame.

Its space-efficient curved layout maintains uninterrupted material flow while maximising available factory floor space.

Engineered with low-maintenance chain technology, the system delivers smooth, reliable operation with reduced wear and minimal lubrication requirements.

This enhances uptime, lowers operating costs, and ensures consistent performance in demanding production environments.

The Curved Conveyor streamlines component transfer, reducing manual handling and supporting faster, more predictable assembly cycles.

Features

• Low-maintenance, robust, bow chain conveyor system
• Integrated gravity rollers for efficient component outfeed
• Dual-end start/stop operator controls
• Seamless integration with upstream equipment including the Nocking Station and/or Component Nailer
• Conveyors mounted on sturdy steel bridge, providing continuous-flow material handling
• Ergonomic transfer height for operator safety and comfort
• Optimised conveyor radius for stable component transfer
• Open-access design for quick operator intervention
• Controlled, consistent feed to the Wall Extruder
• Reduced manual handling between stations
• Engineered for high-volume production

OPTIONS

• Also available in sizes 4800mm and 6000mm with 3rd rail for handling pre-assembled components and studs over 3600mm.
• Min/Max feed lengths for these sizes are:
  – 4800 (1710 – 4800mm)
  – 6000 (1710 – 6000mm)
