OVERVIEW

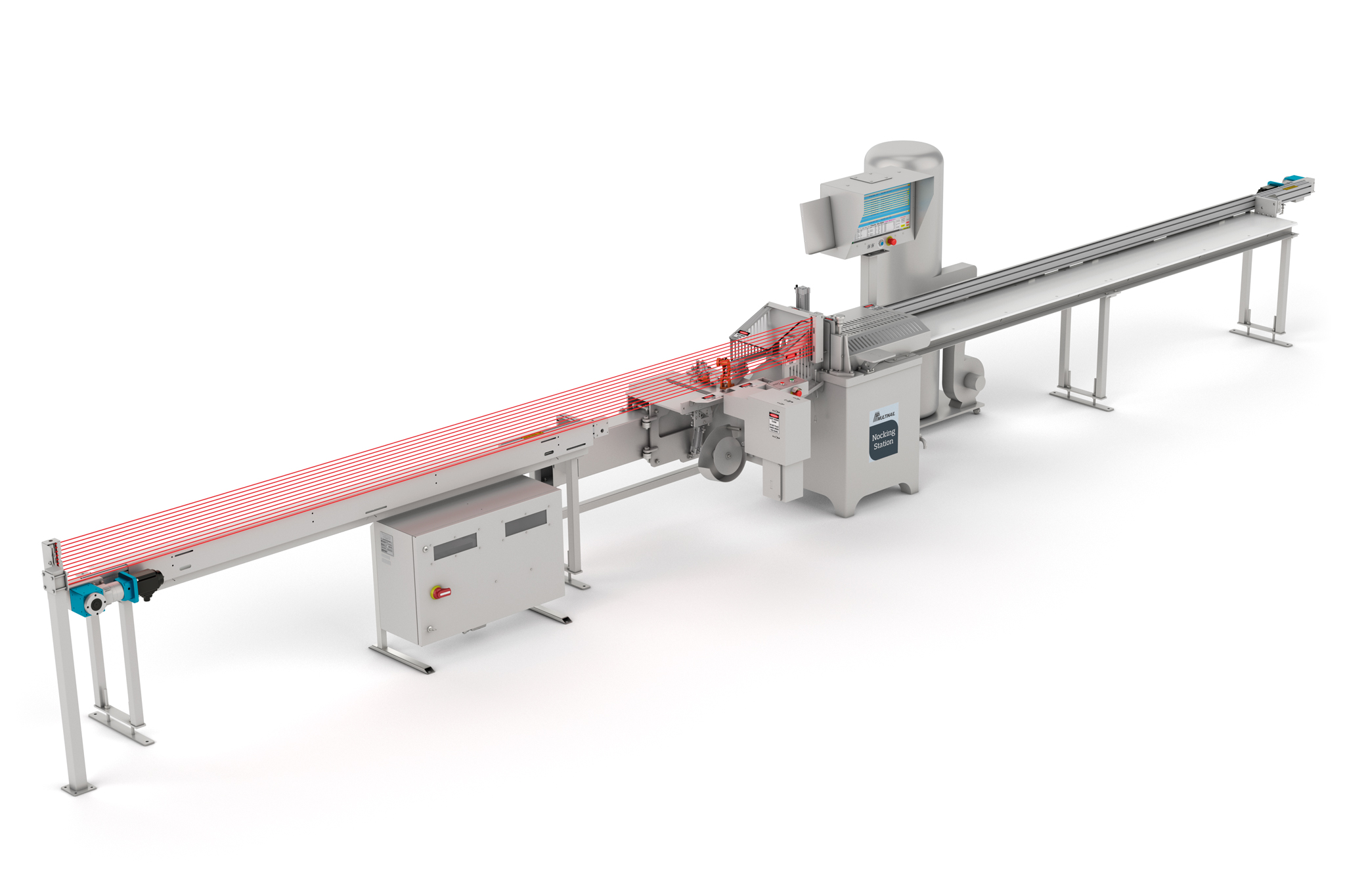

The Nocking Station is a compact, all-in-one system engineered for accurate cutting and nailing of noggins and stud components.

Built for speed and precision, it removes Wall Extruder bottlenecks and reduces manual workload.

Two-hand controls and multi-axis clamping ensure safe, consistent operation, while its integrated design optimises floor space and pairs with the Curved Conveyor for maximum efficiency.

Ideal for wall frames with a single row of straight noggins, it enables a highly efficient workflow and increased output per operator without added labour.

Automation of the noggin and stud cutting and nailing processes enhances accuracy, build quality, and safety by reducing manual handling and handheld nail gun use.

Pre-assembled components streamline wall line assembly, boost throughput, and increase metres per operator.

FEATURES

• Dual axis timber clamping for safe and accurate nailing
• Integrated pop-up saw that automatically cuts noggins and studs to precise lengths
• 600mm saw blade size
• Supports vertical noggins: 70mm noggins on 90mm studs, 70mm noggins on 70mm studs and 90mm noggins on 90mm studs and, 140mm noggins on 140mm studs
• Safety infeed tunnel
• Supports nogs to be flush or 10mm offset from bottom
• Can nail multiple noggins on a single stud
• Automated nail gun
• Dust extraction system for a cleaner workspace
• 2 hand safety operation
• High capacity nail coil holder
• Compatible with wide range of standard industry data exports
• 24″ industrial touch screen
• Factory tested to +/- 0.5mm
