OVERVIEW

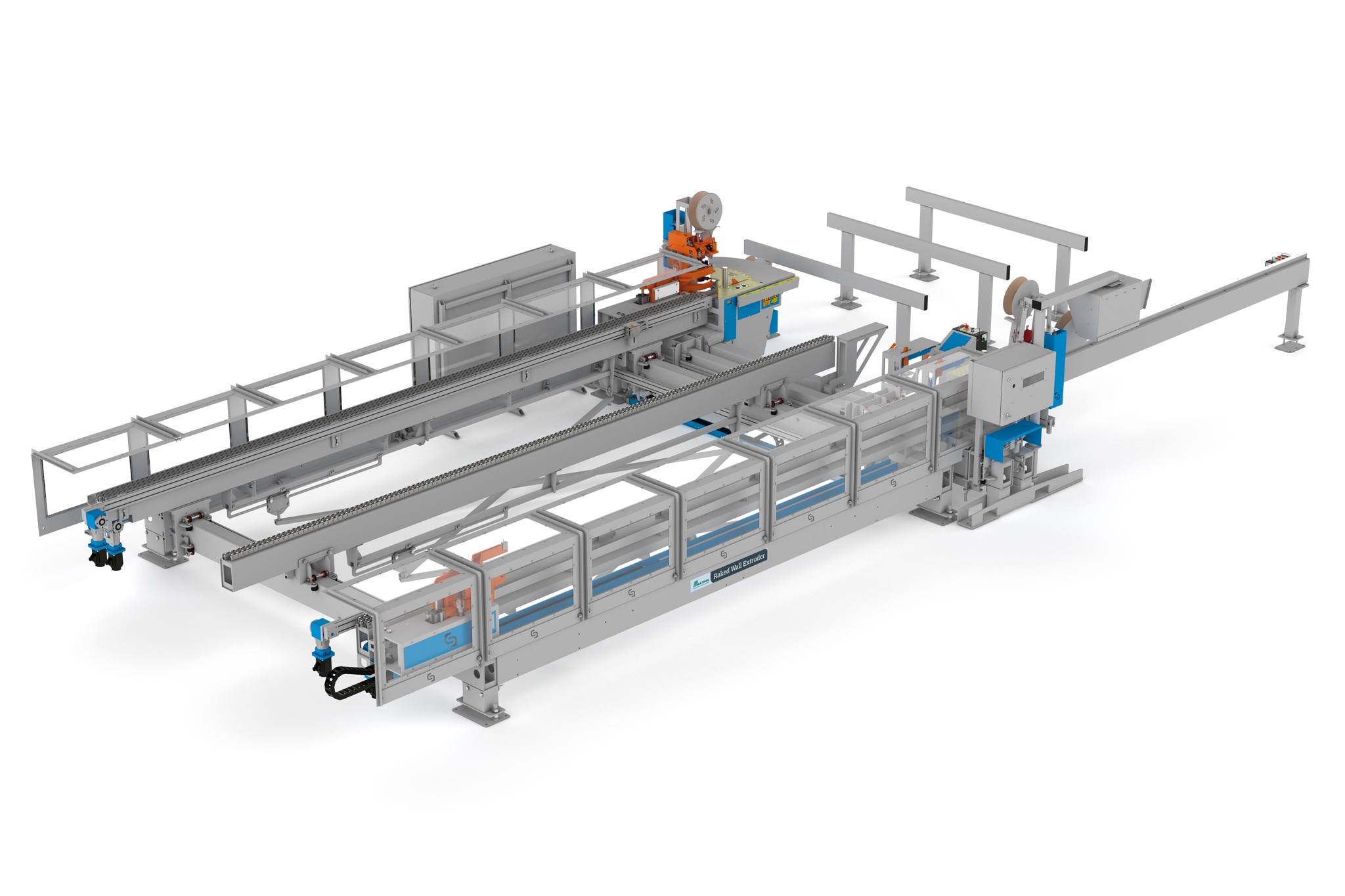

The Raked Wall Extruder is an automated solution for assembling standard and raked wall frames from precut timber components.
Its wall-plate gripping assembly precisely indexes and positions the wall plates at each stud location, ensuring accurate alignment before nailing.
After each automated nailing cycle, the assembly advances the frame to the next stud location.
This continuous process streamlines production, delivering high-quality standard and raked wall frames with exceptional efficiency.
FEATURES
- Height adjustable nail gun and clamp guarding
- Ergonomic clamp operating system of top and bottom plates
- Timber sensor/gun lockout system – timber product and width sensors eliminate misfiring when no timber or incorrect width timber is detected
- Automated wall height
- Nail gun automatically indexes to suit 70mm – 140mm timber
- 2 hand safety operation for safe clamping and firing
- High capacity nail coil holders
- Nail usage counter – alerts operator when nails need to be replaced
- Compatible with wide range of standard industry data exports
- 24″ industrial touch screen
OPTIONS
- Fixed left or right hand configuration
- Outfeed conveyor systems
- Nail guns can be stick or coil types (not included with the machine)
