OVERVIEW

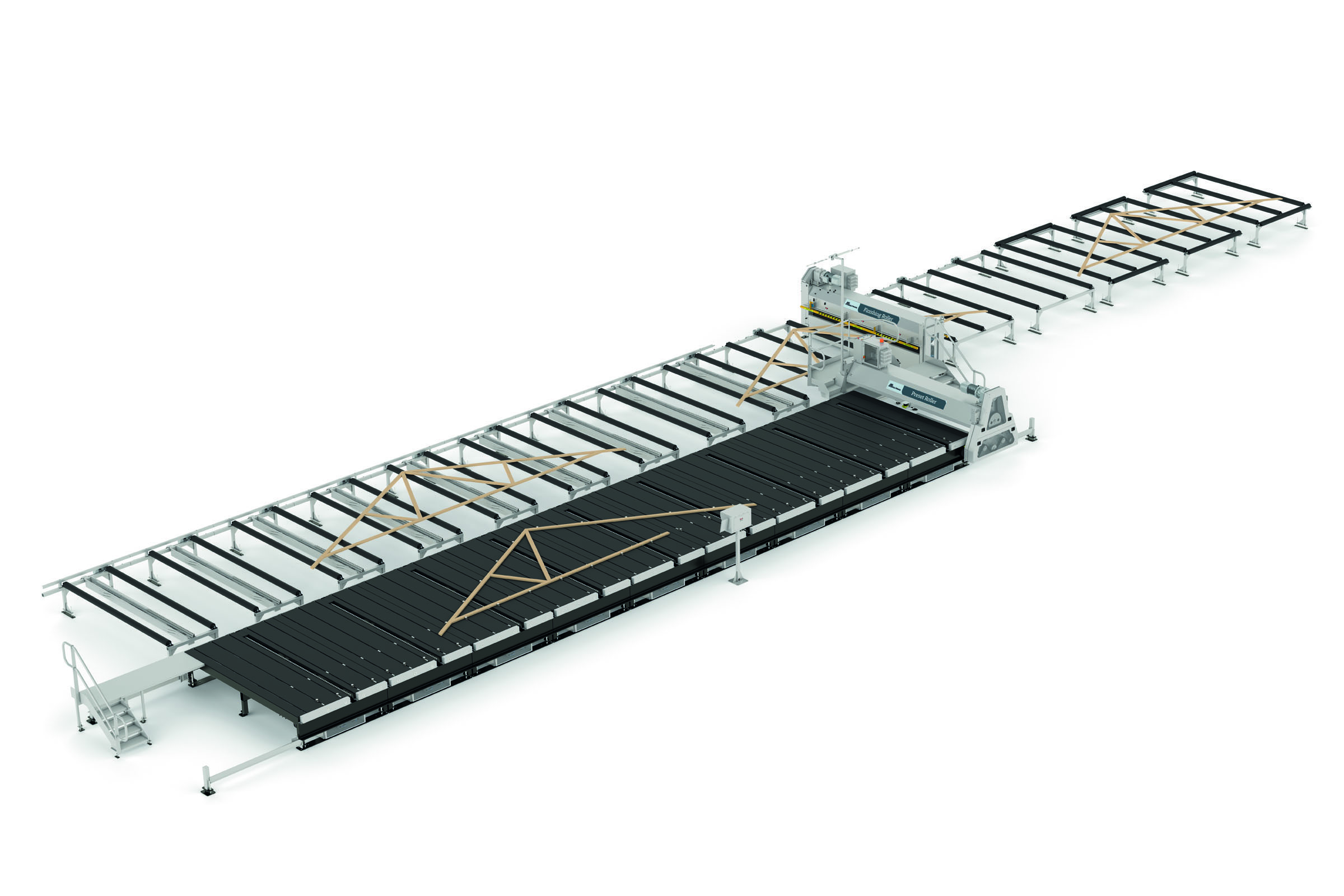

The Roller Plant – Side Eject is used in the assembly of timber roof trusses. Precut timber components are placed into the jigging along with nailplates, the Preset Roller travels down the length of the truss, rolling the nailplates into the precut timber components creating a truss.

The truss is then ejected onto the receivers and through to the Finishing Roller, fully embedding the nailplates.

The Roller Plant system streamlines the assembly of timber roof trusses – combining technology, precision and efficiency to produce high quality trusses.

FEATURES

• Bolt on truss jigging included:
  – Jigging bobbins (2 per table)
  – Adjustable heel jigs (2 per operator station)
  – Apex jig (1 per operator station)
  – Vertical upright jig (1 per operator station)
  – Magnetic stops (4 per operator station)
• Safety scanners
• Transfer rollers
• Ejection system
• Preset Roller and Finishing Roller
• Heavy duty construction

OPTIONS

• Automated or manual jigging
• Laser projection
• Configurable length by adding or reducing tables
• 1, 2, 3 or more Preset Rollers (normally dependent on table length)
• 1 or multiple operator interfaces for automated jigging
• Configurable outfeed length
• Roof Truss Horizontal Stacker
