OVERVIEW

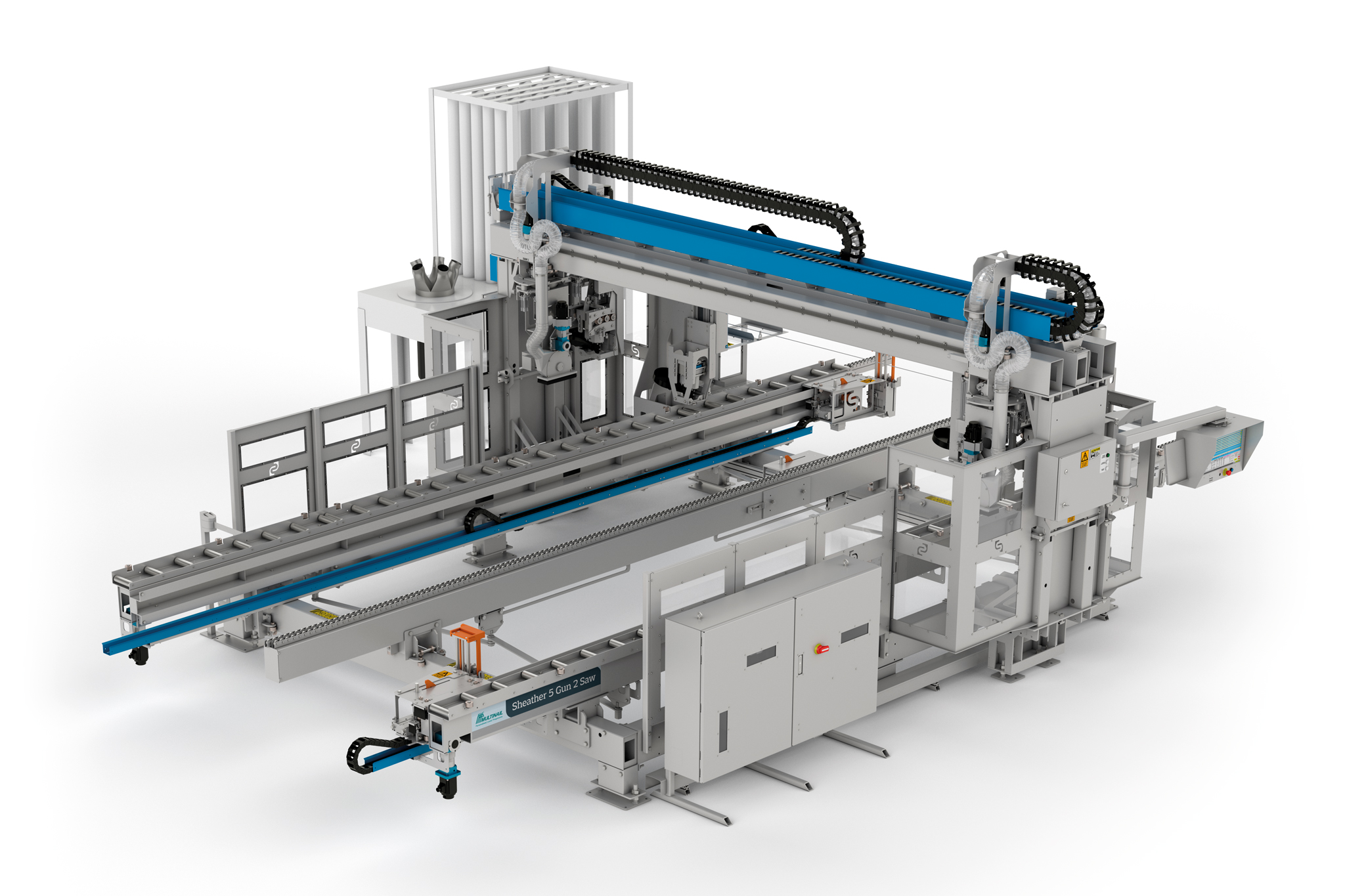

Set and forget as the Sheather 5 Gun 2 Saw one touch automation, means the operator loads each frame and lets the machine do the rest.

With the capability of shooting up to 10 nails per second from all 5 guns, and clamping and straightening studs from the underside to prevent shiners, this machine delivers a perfectly sheathed wall in minutes.

A fantastic addition to your wall frame line, providing sheathing without being labour intensive.

FEATURES

• Fully automated, CNC machine
• 5 high speed nail guns comprised of 2 fixed and 3 floating gun mounts
• 2 saws which provide cutting tabs with a max cutting
  depth of 45mm
• Automatically clamps and straightens studs during fixing
• Nail guns rotate 90 degrees for horizontal nailing
• Nail guns tilt 15 degrees for ease of nailing joins
• Wall frame is moved under fixed gun bridge
• Movable auto table to allow for different frame sizes –
  maximum 6m frame length
• Software accurately time stamps panels
• Designed for 1 person operation
• Interlocked safety guarding and safety belt
• Dust extraction ducting
• Nail usage counter – alerts operator when nails need to be replaced
• Compatible with wide range of standard industry data exports
• 24” industrial touch screen

OPTIONS

• Left or right hand configuration
• Perfectly paired with the Build Table
• Also available for maximum frame height of 4800mm
• Dust Collector
• Also available with no saws
