OVERVIEW

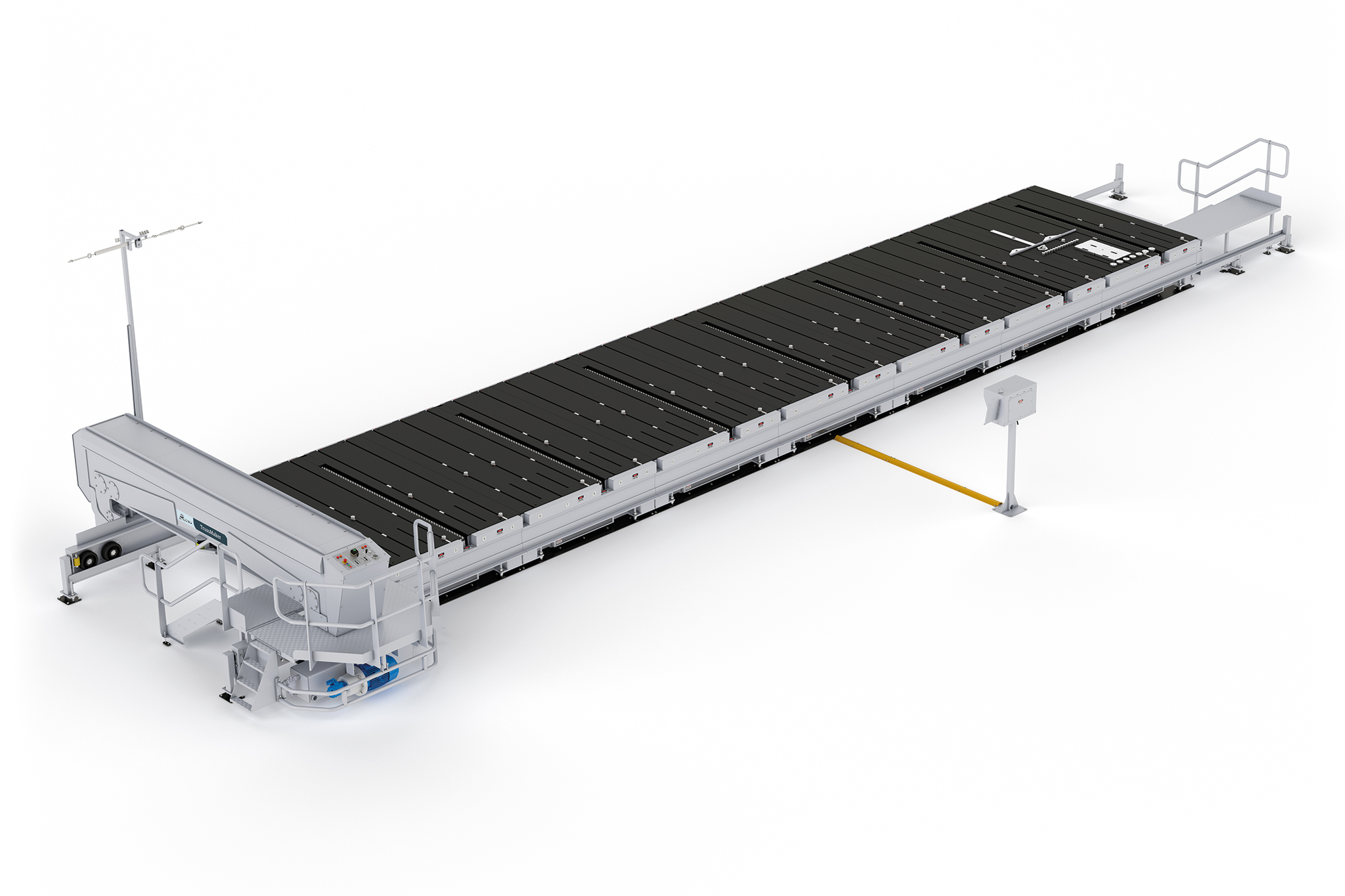

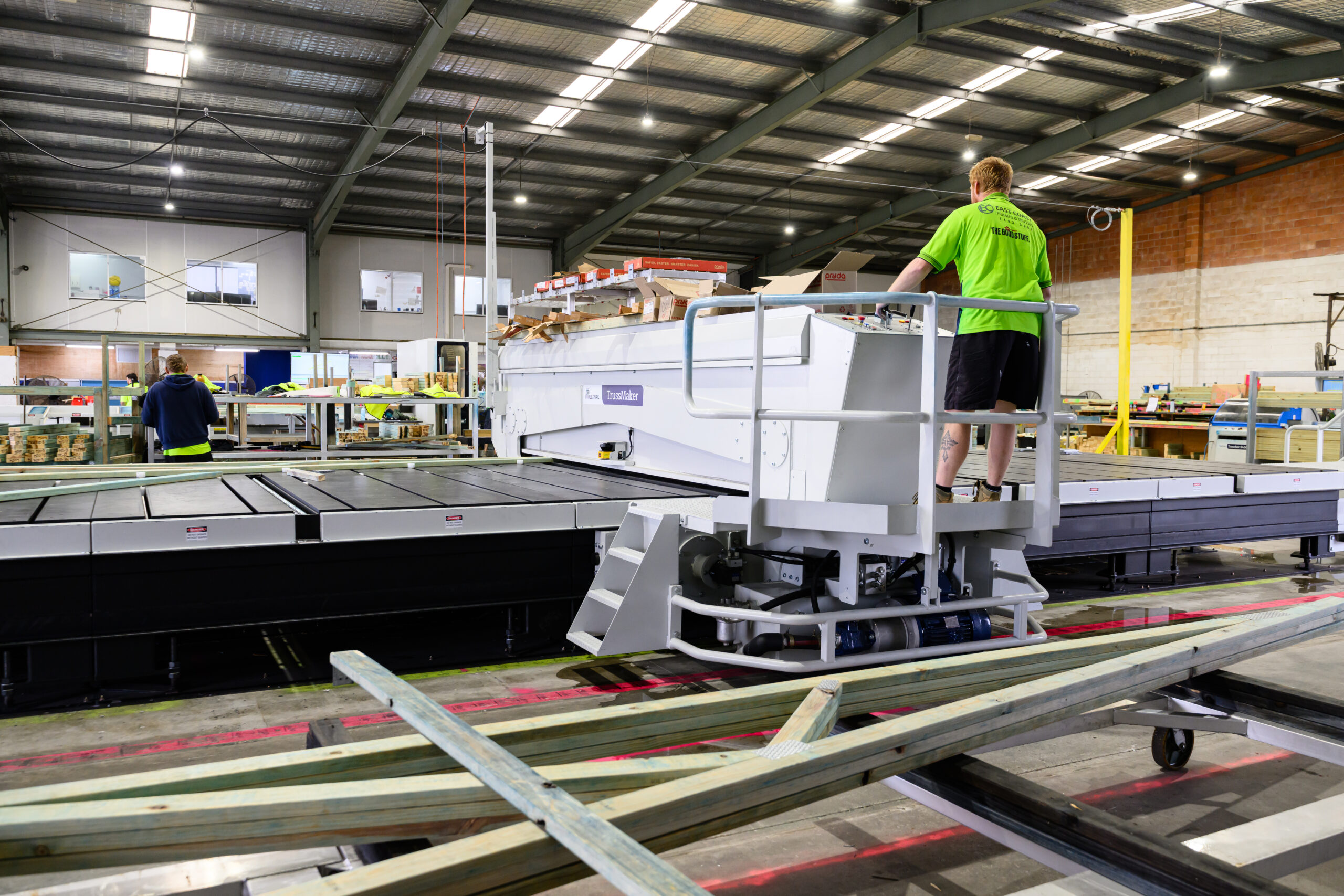

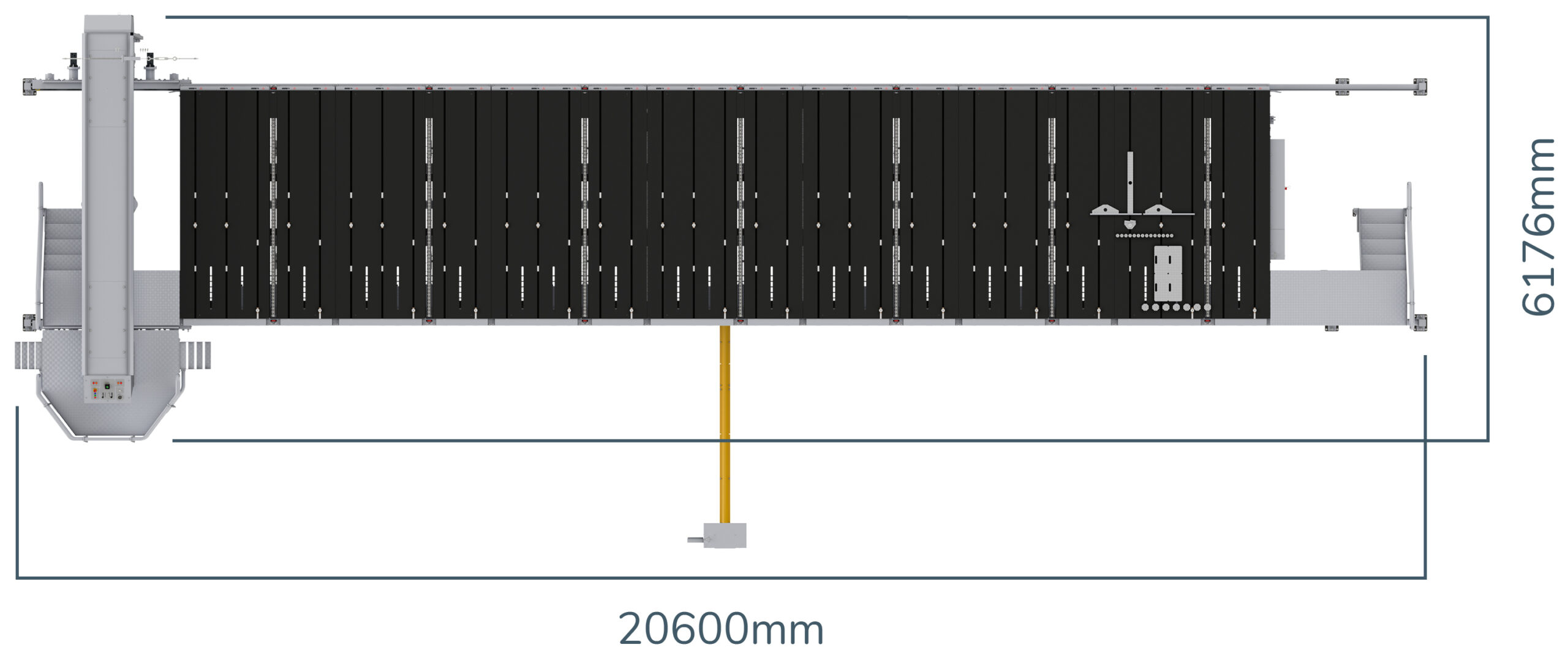

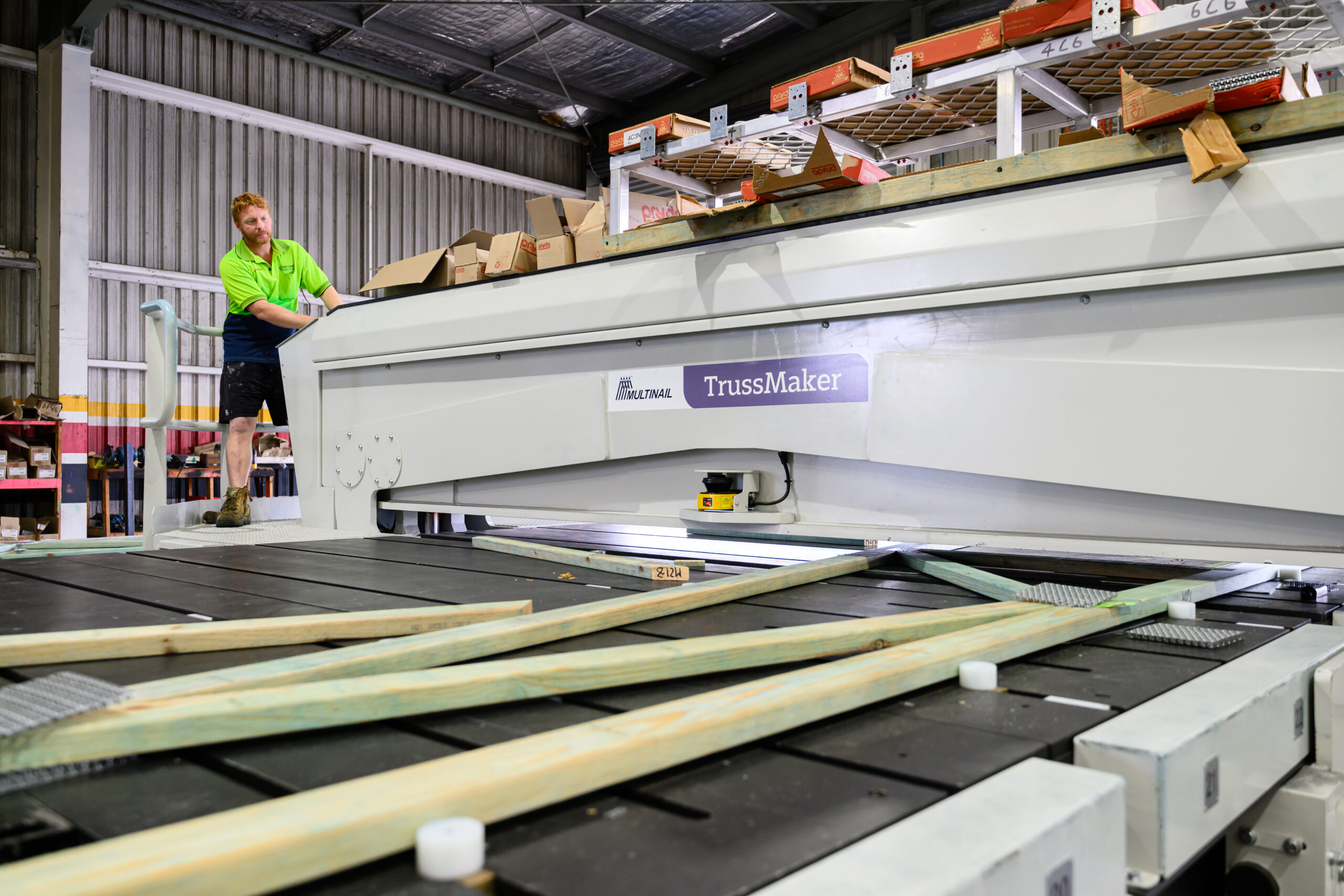

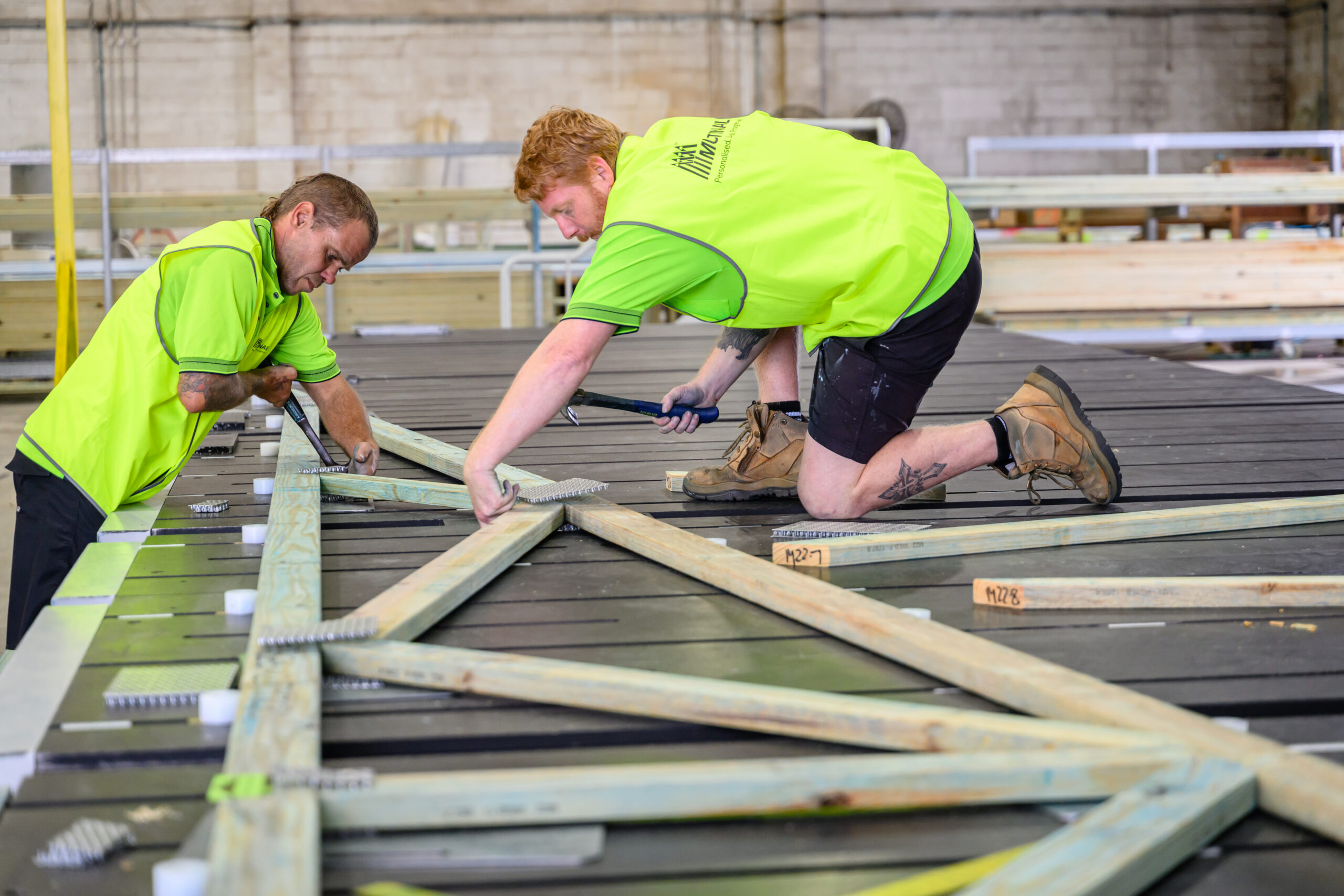

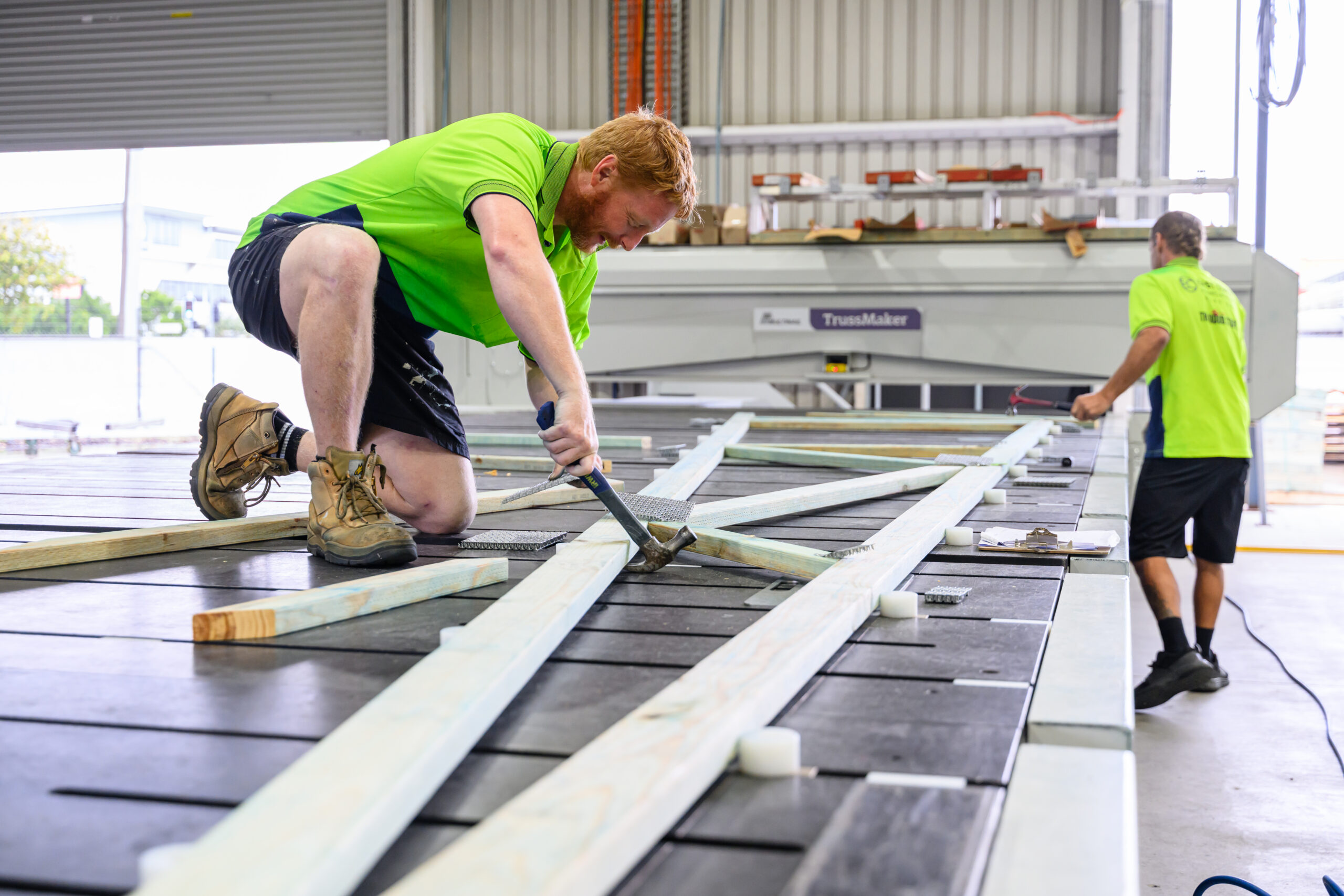

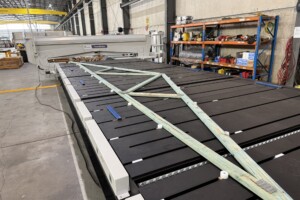

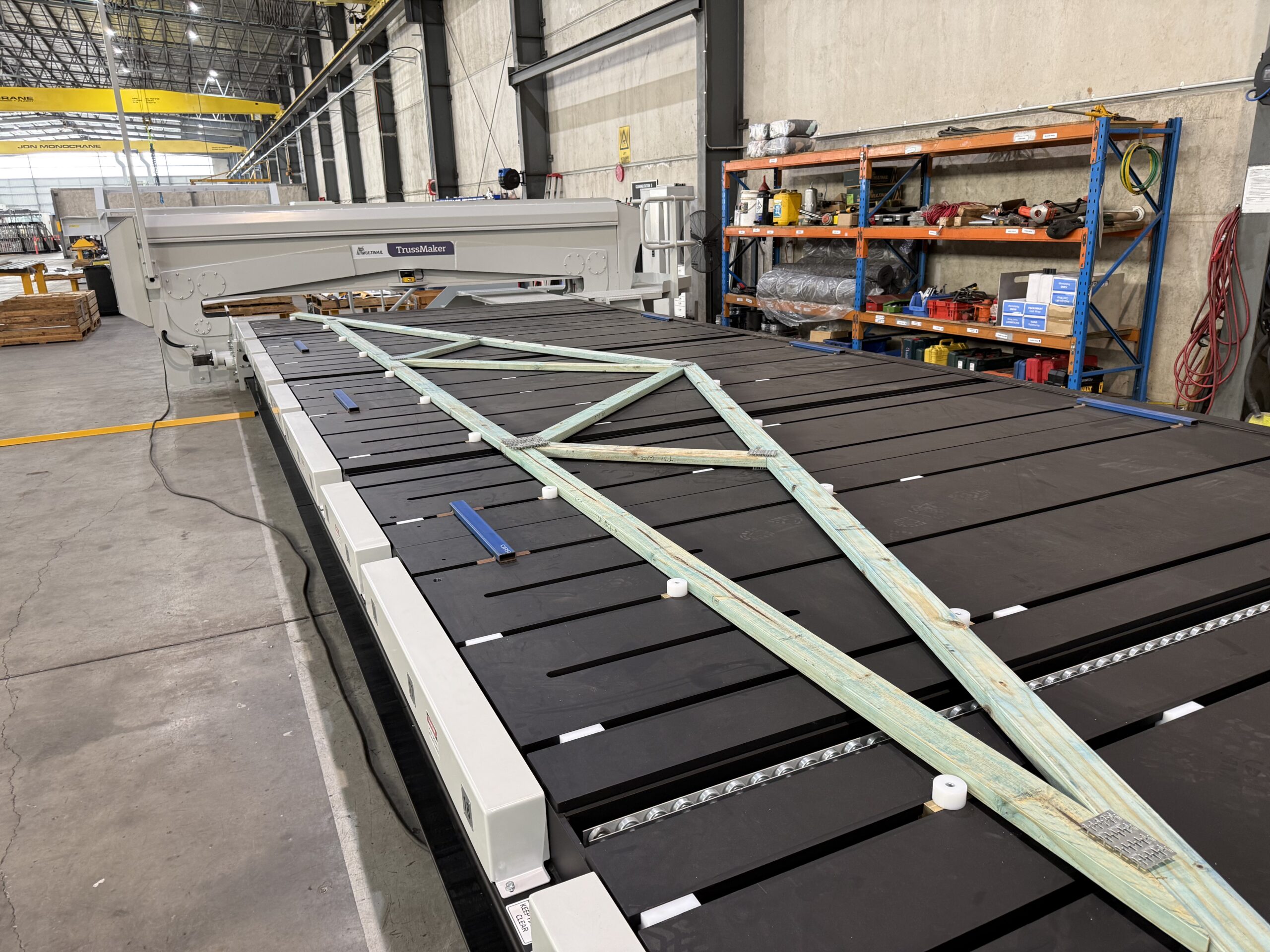

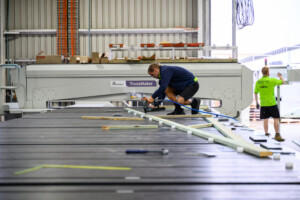

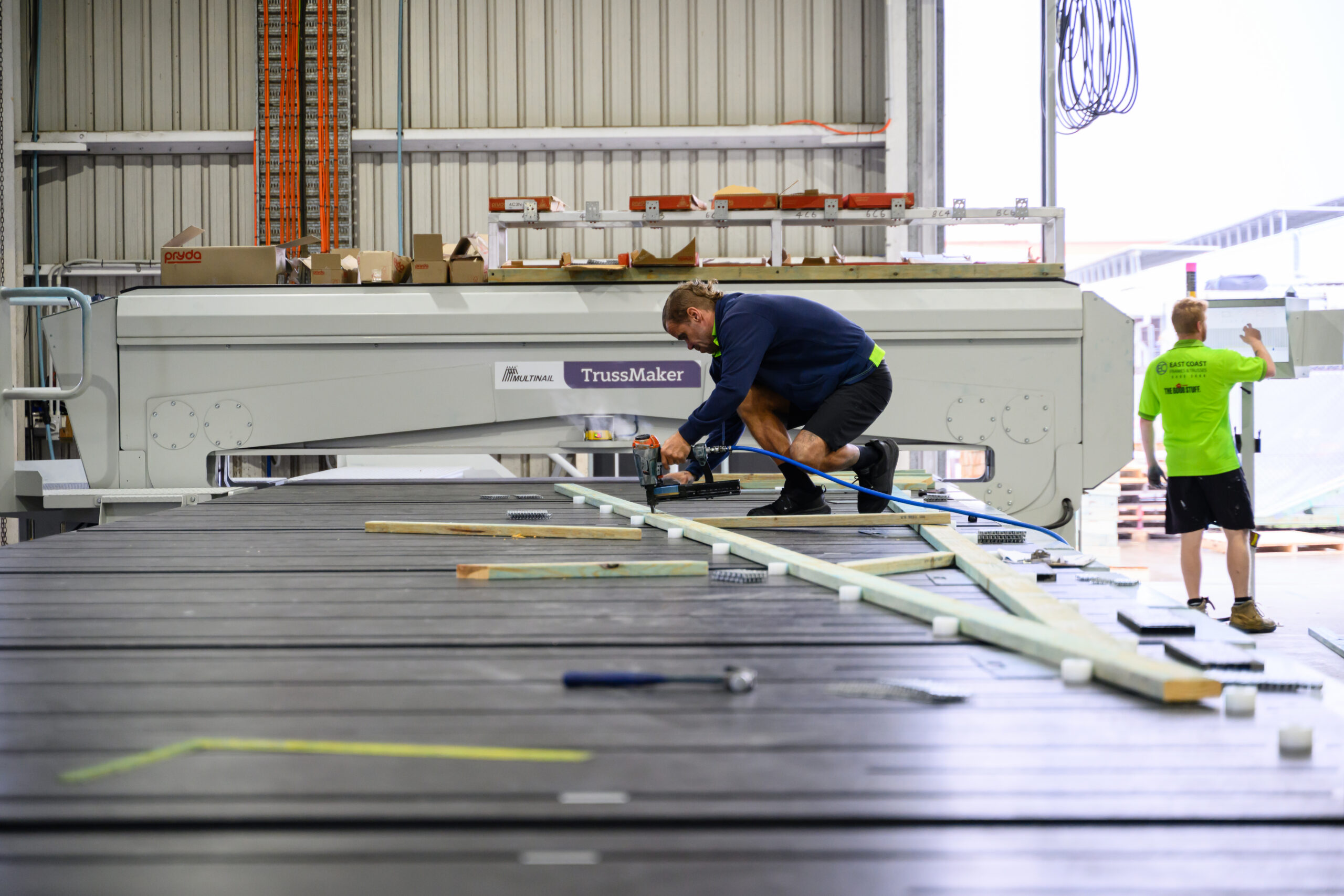

The TrussMaker is used in the assembly of timber roof trusses. Precut timber components are positioned within the jigging system, and nailplates are placed at each joint.

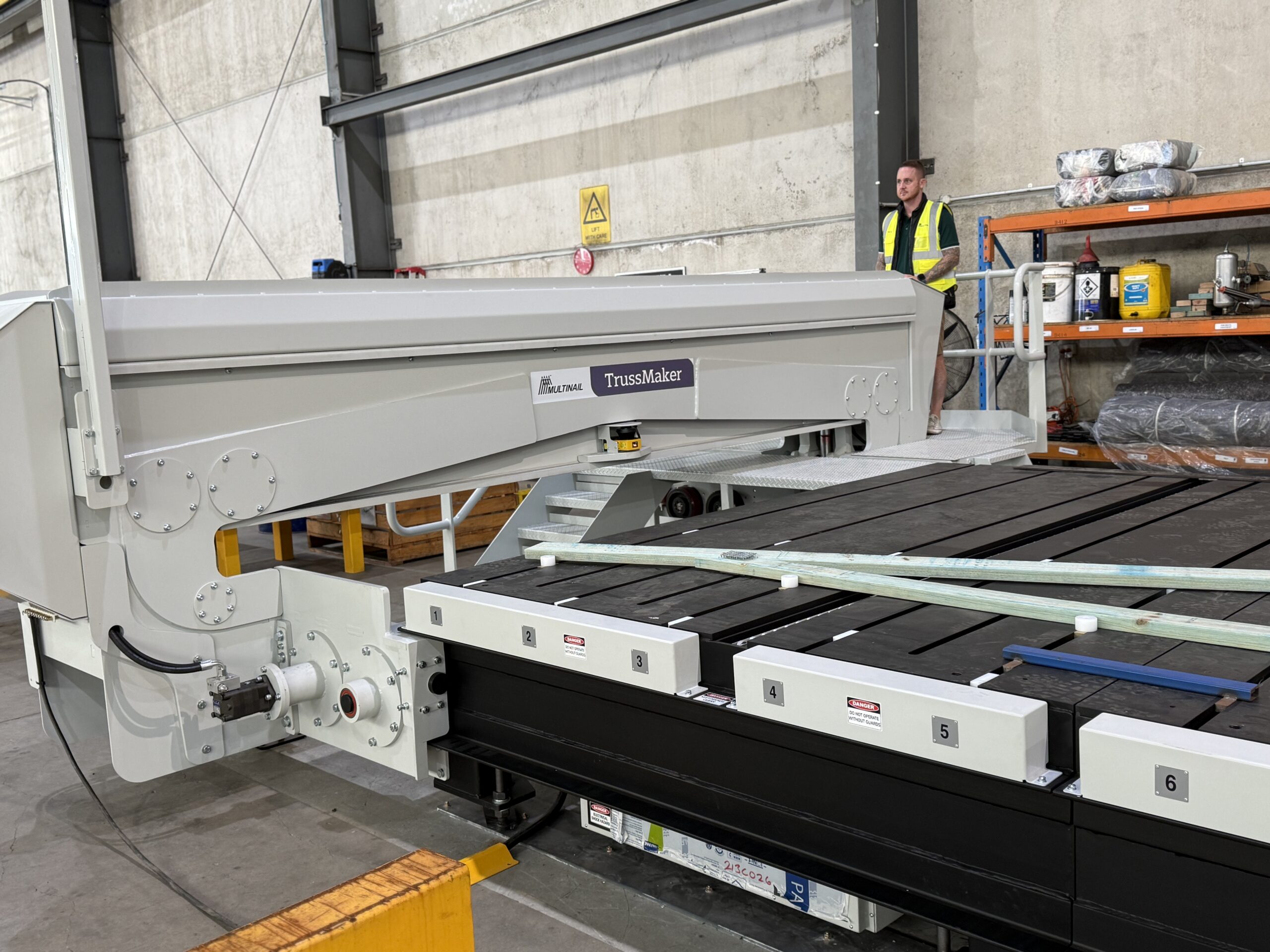

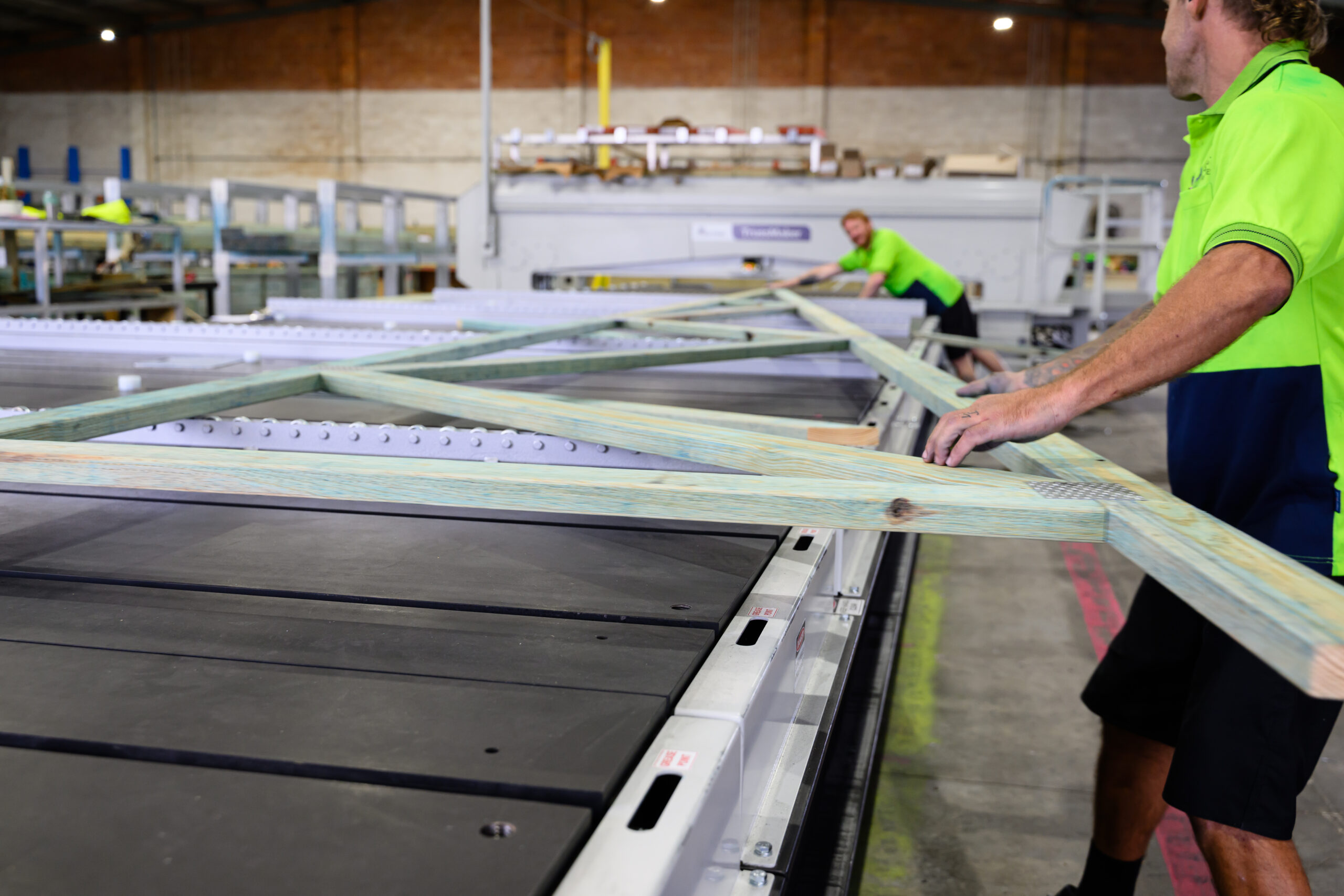

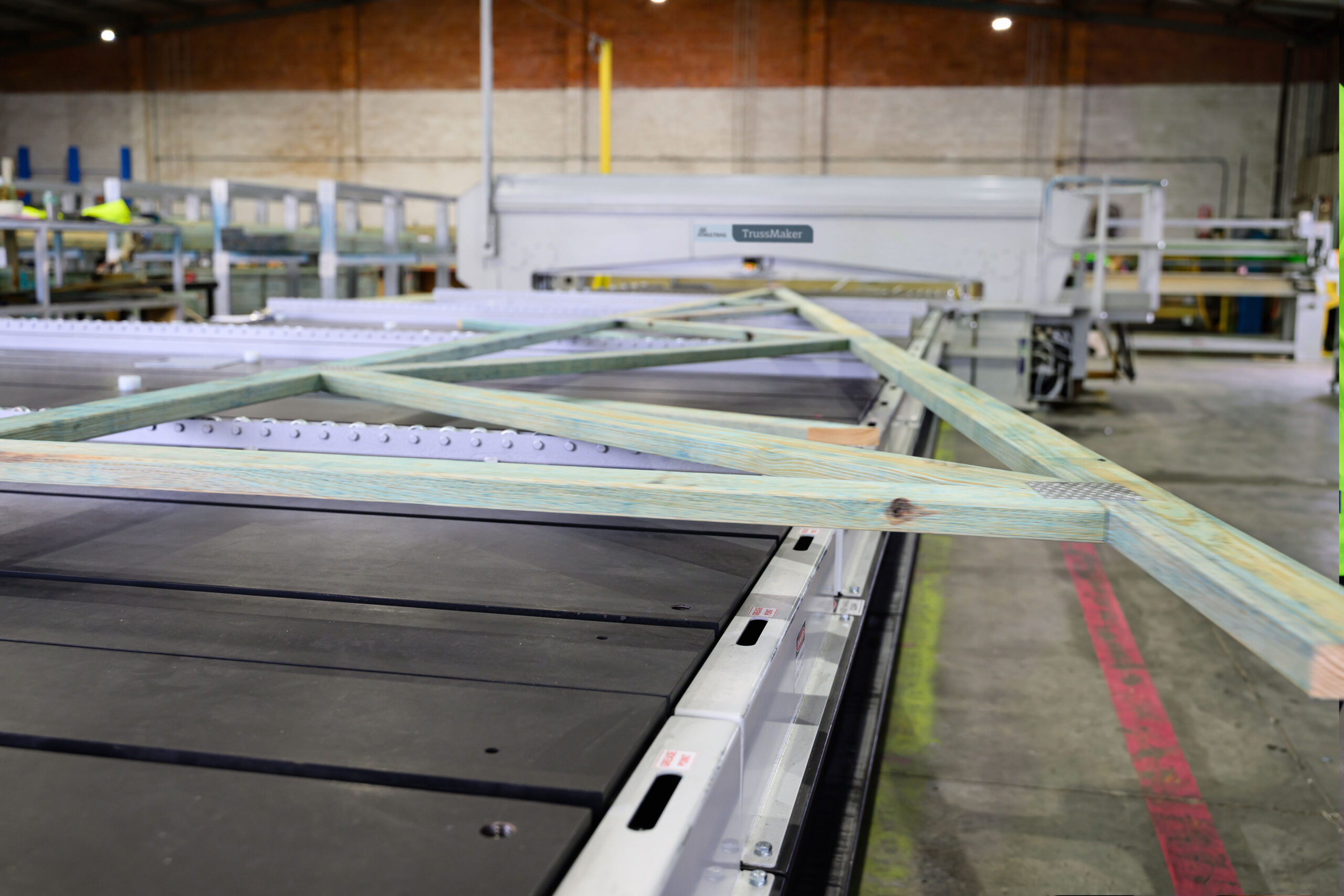

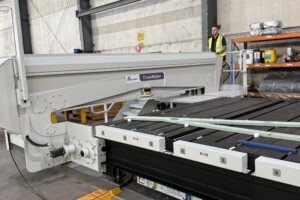

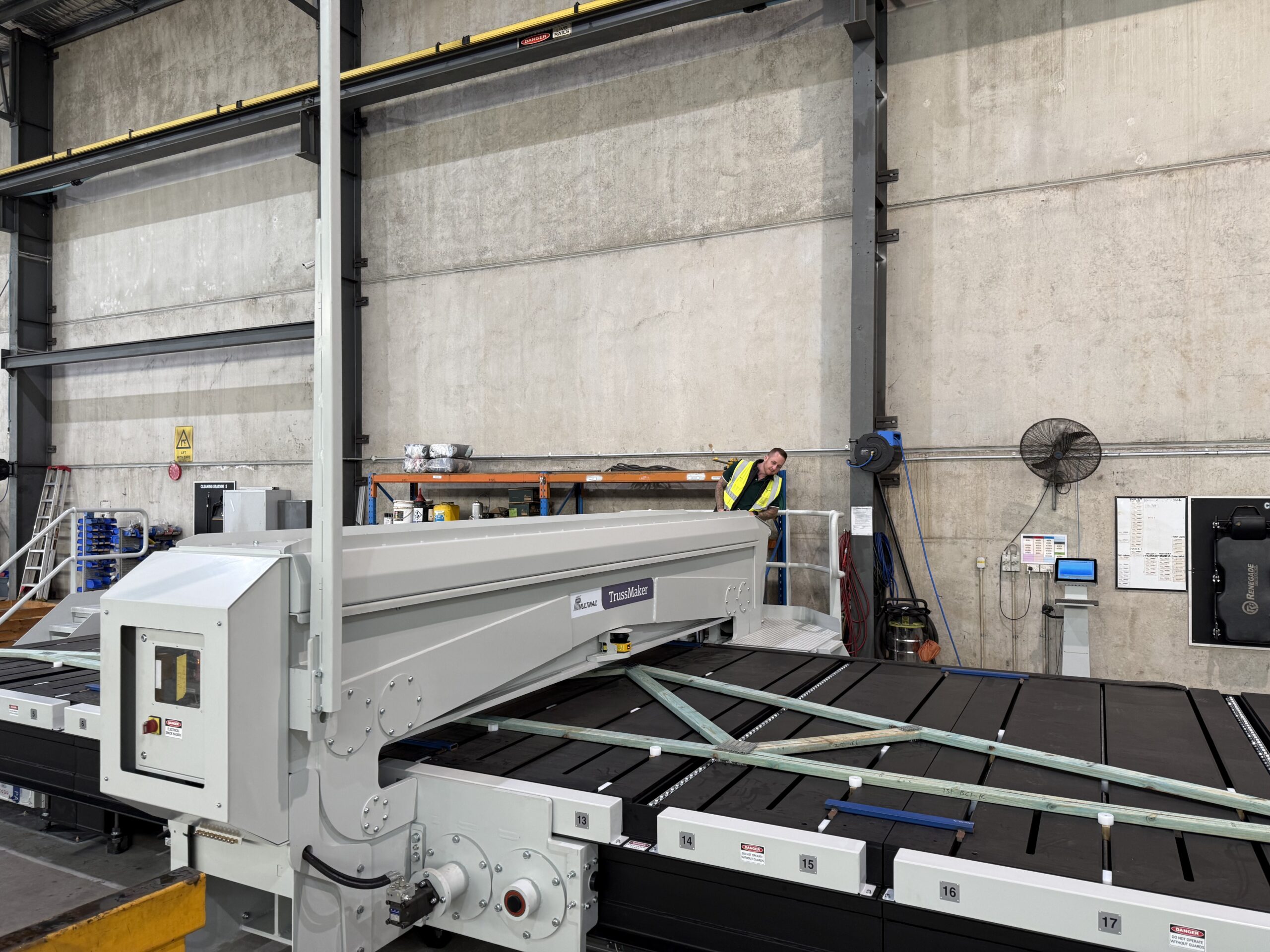

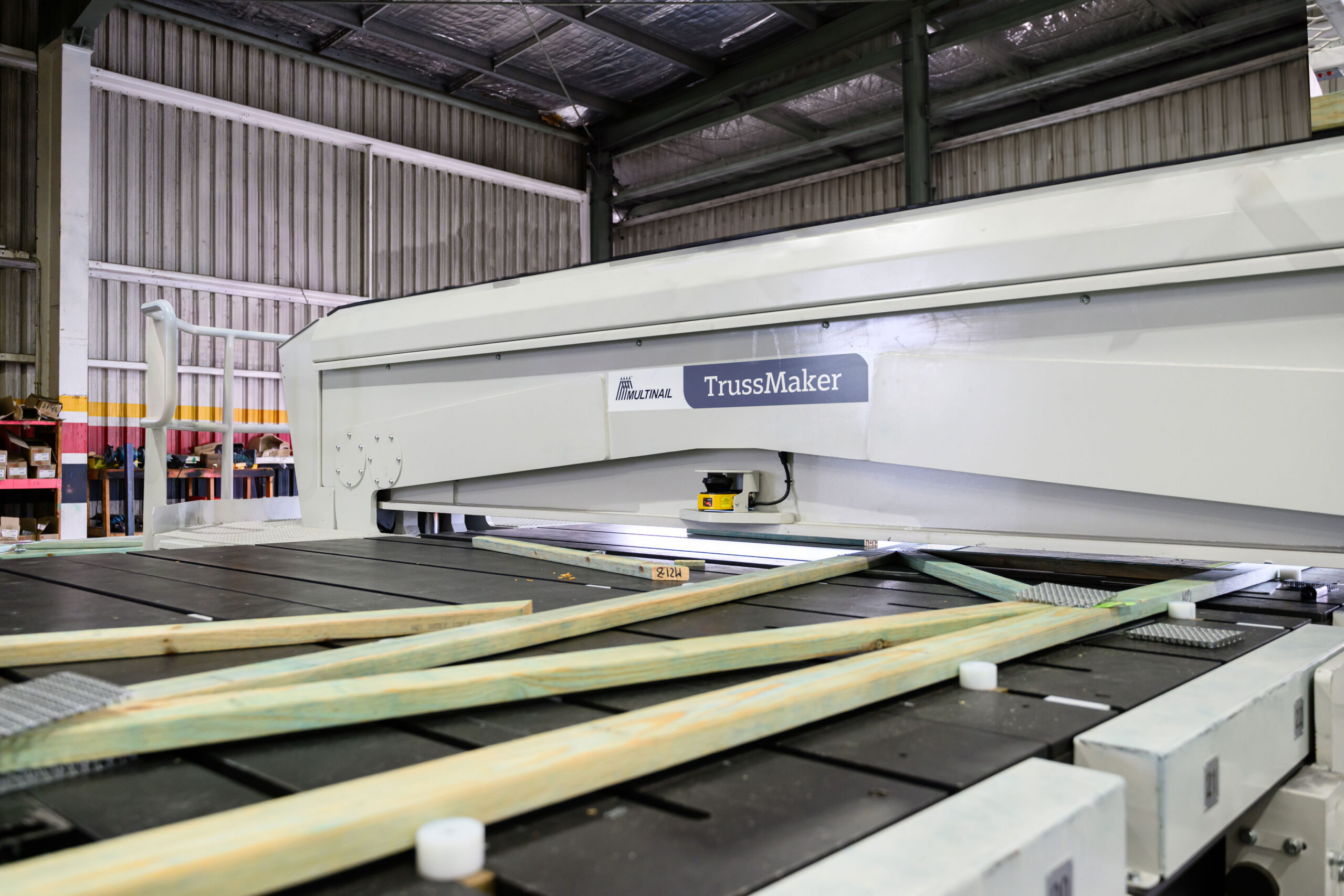

The ride-on press head then travels along the truss, accurately pressing the plates into the timber to secure every connection. Once complete, the finished truss is manually ejected from the table.

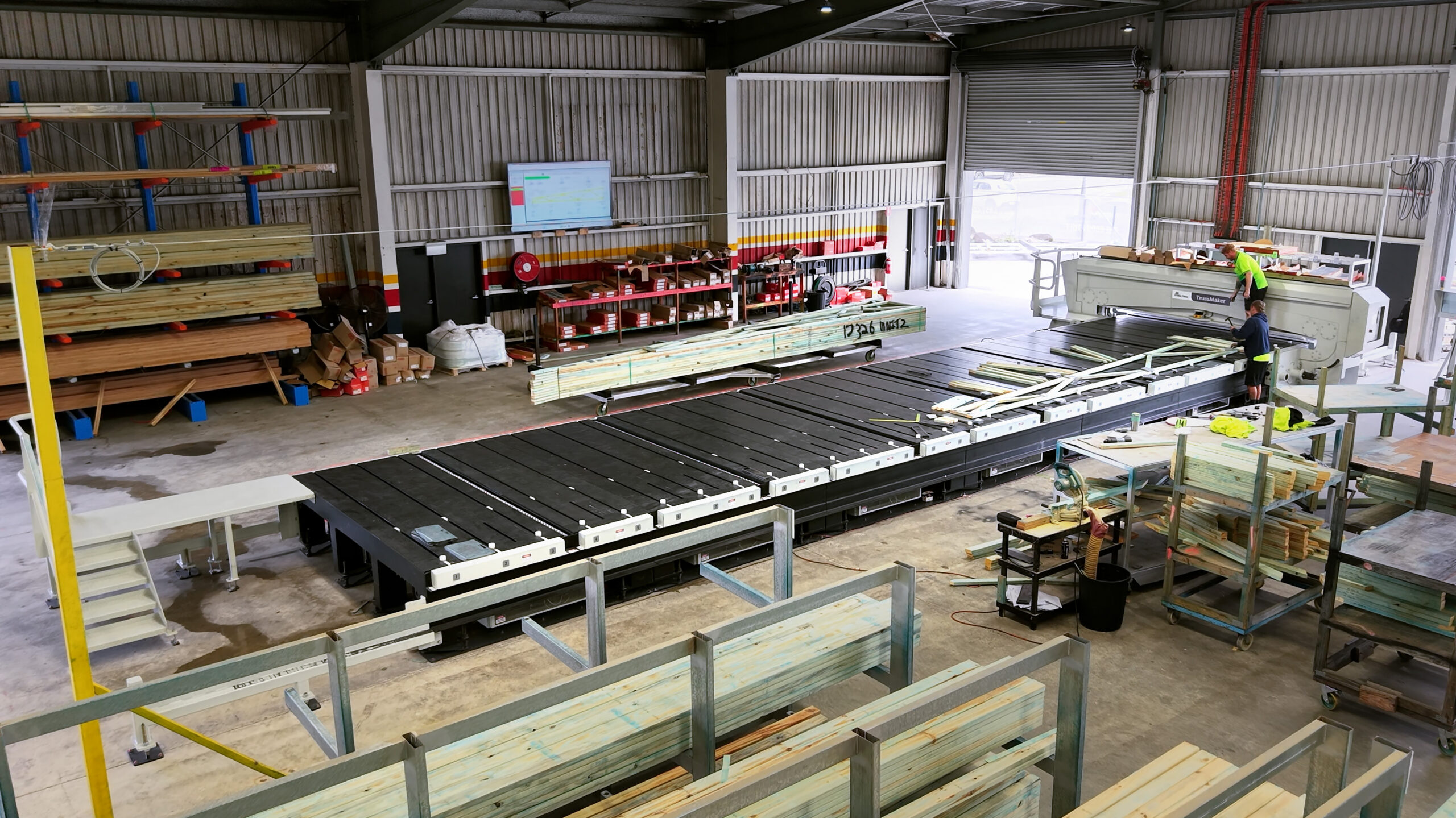

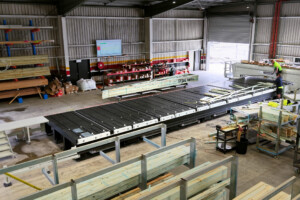

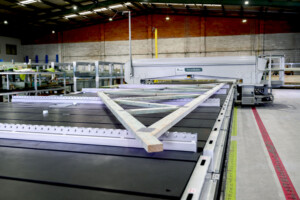

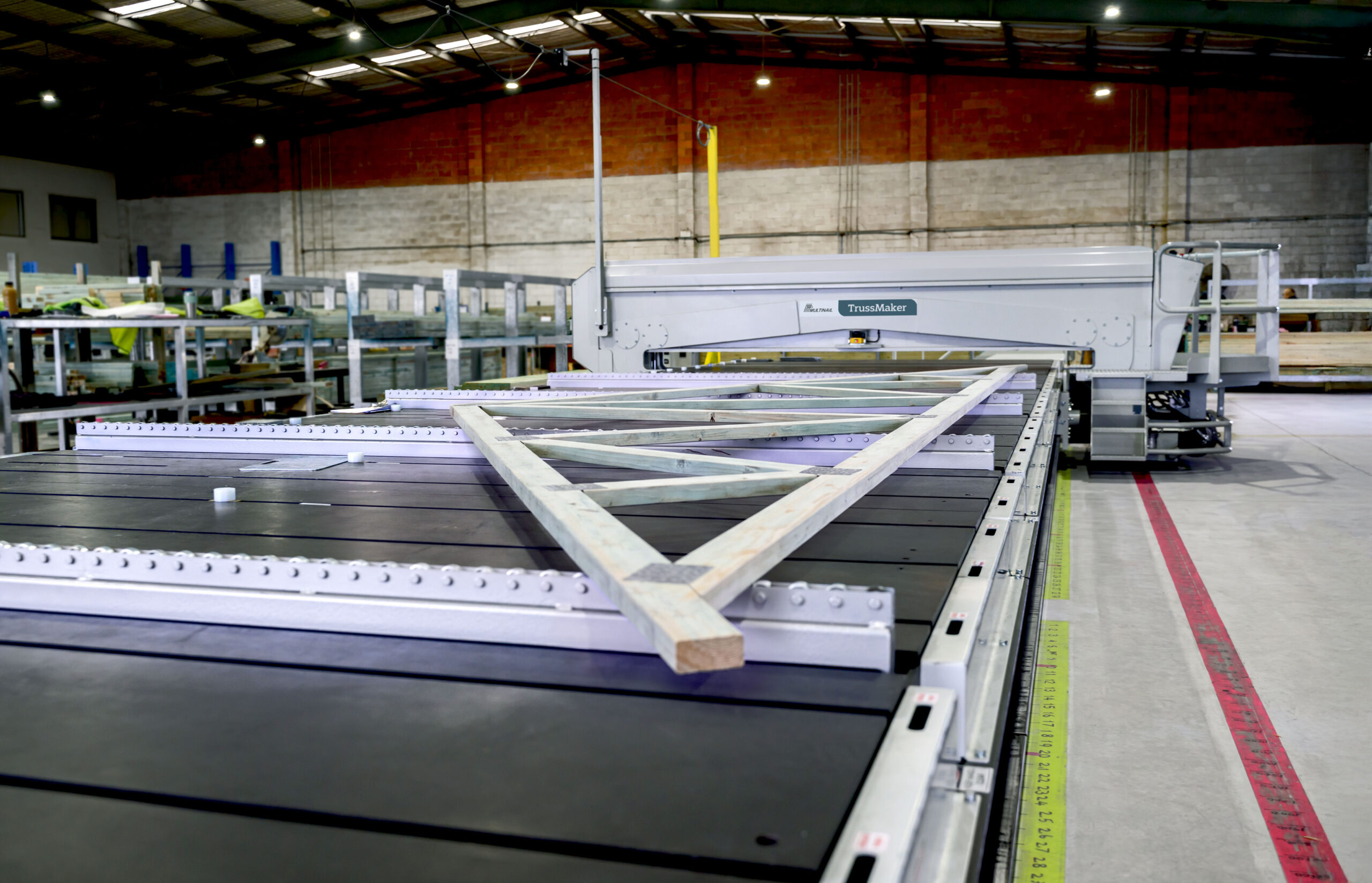

The TrussMaker streamlines the assembly of timber roof trusses while maximising floor space – combining technology, precision and efficiency to produce high quality trusses.

Features

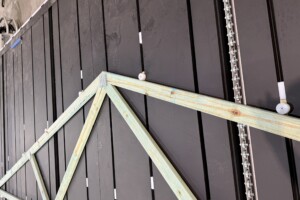

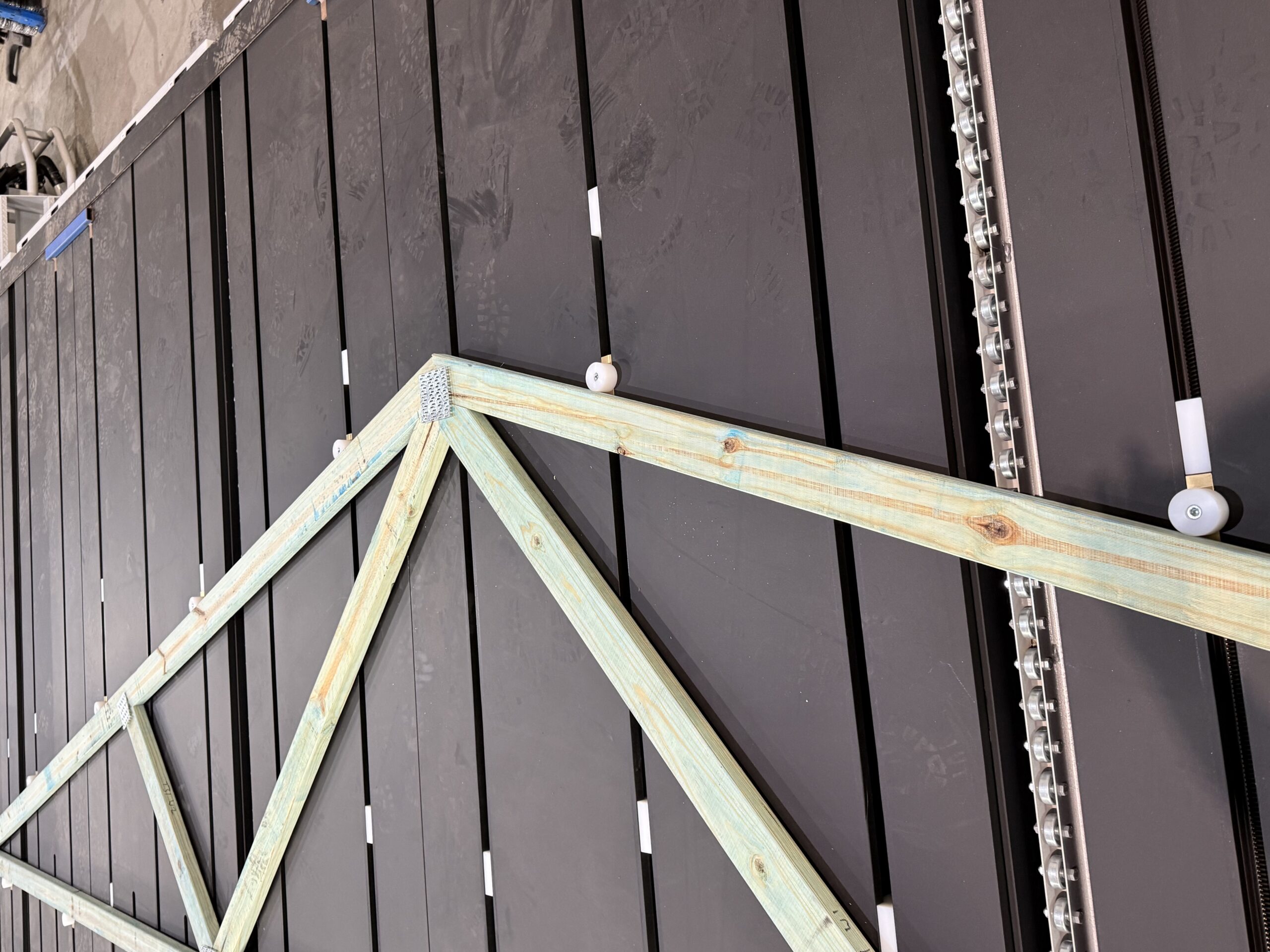

• Truss jigging included:
  – Jigging bobbins (2 per table)
  – Octa-cam (1 per table)
  – Adjustable heel jigs (2 per operator station)
  – Apex jig (1 per operator station)
  – Vertical upright jig (1 per operator station)
  – Bridging plates (20 per operator station)
  – Magnetic stops (4 per operator station)
  – T Bar allen key (1 per operator station)
• Heavy duty construction
• Horizontal manual ejection system

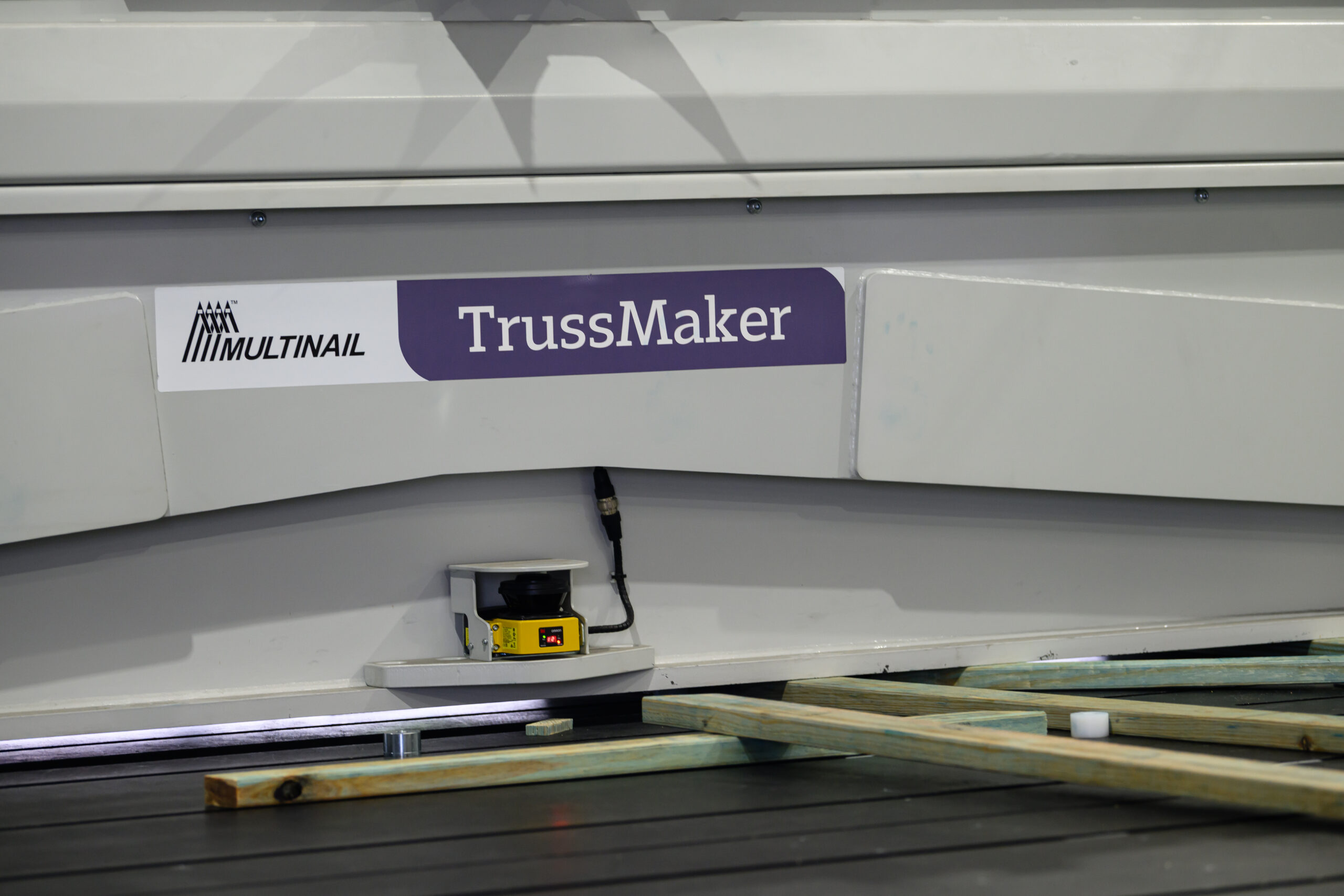

• Safety laser scanner

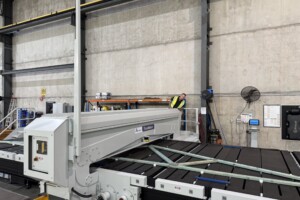

• Ride-on platform (table height)
• Direct drive
• Bell crank pressing action
• Pressure boost button

OPTIONS

• 2 configurations – side eject, end eject
• Ride-on platform either side of table

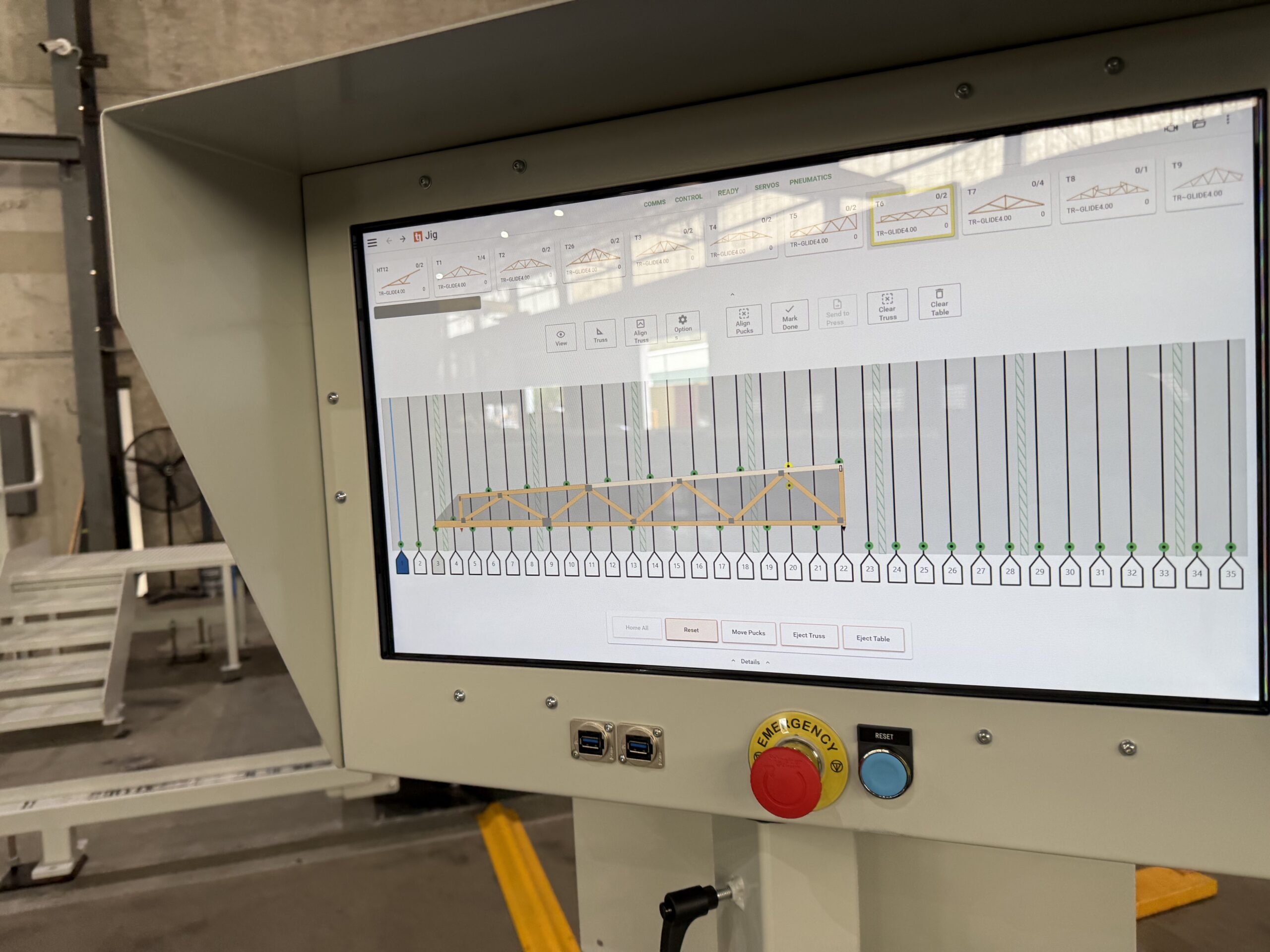

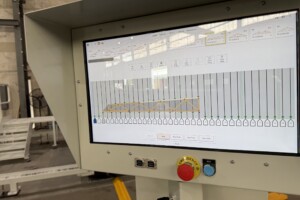

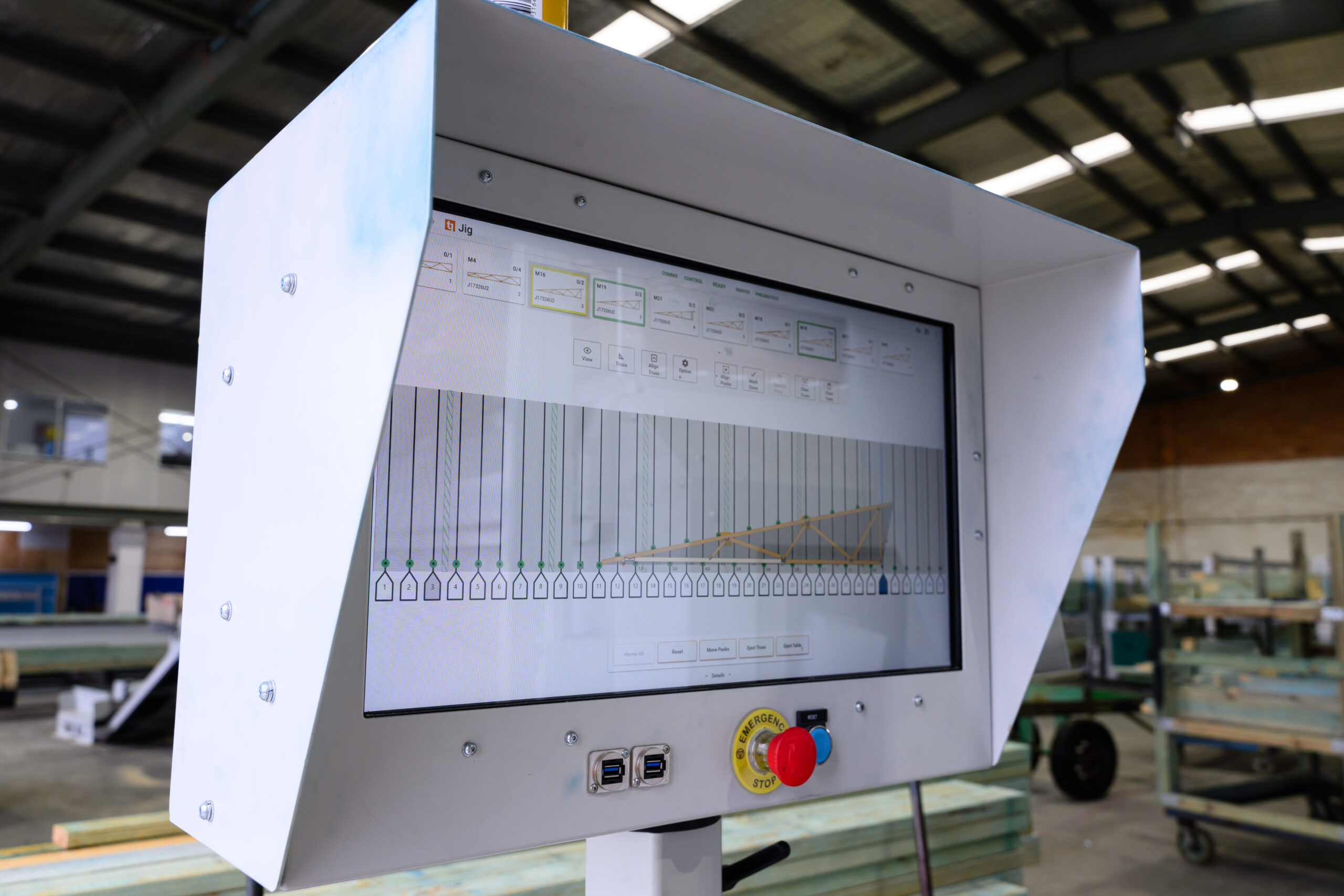

• Automated or manual jigging
• Laser projection
• Configurable length by adding or reducing tables
• 1, 2, or more press heads (normally dependent on table length)
• 1 or multiple operator stations for automated jigging
