OVERVIEW

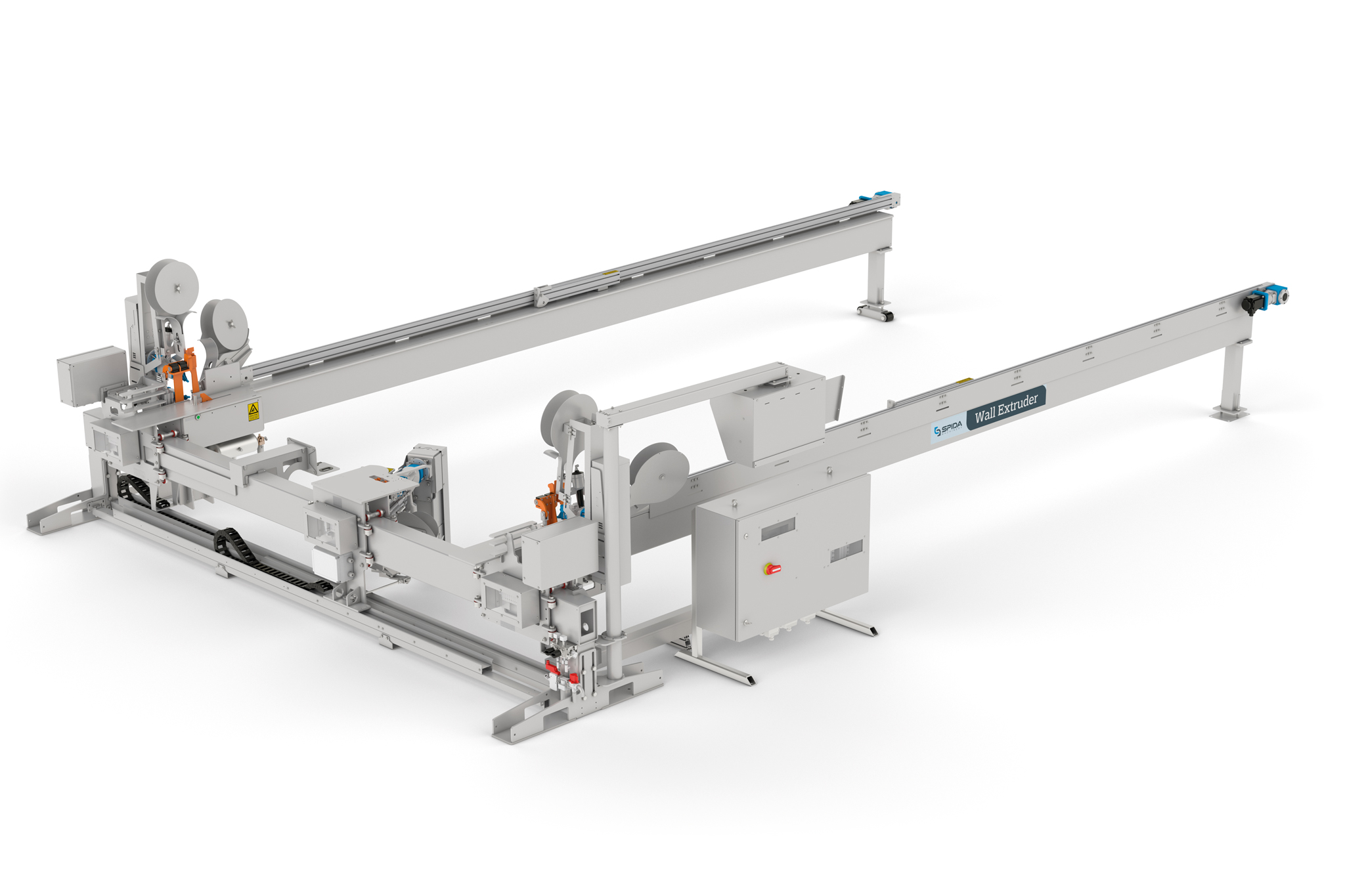

The Wall Extruder is engineered for automated assembly of wall frames using precut timber components.
The automated plate progressors precisely align the wall plates to each stud location in preparation for nailing.
After each automated nailing cycle, the integrated automated plate progressors index the frame to the next stud location.
This automated cycle continues until the wall frame has been completed and is ready to move to the next phase of the manufacturing process.
FEATURES
- Innovative clamping to improve safety and ease of loading studs and sub assemblies
- Adjustable for wall frame heights from 1800mm –3600mm
- Automated centre nail gun
- Nail gun automatically indexes to suit 70mm – 140mm timber
- 2 hand safety operation for safe clamping and firing
- High capacity nail coil holders
- Nail usage counter – alerts operator when nails need to be replaced
- Compatible with wide range of standard industry data exports
- 24″ industrial touch screen
OPTIONS
- Fixed left or right hand configuration
- 4800mm or 6000mm automated plate progressors
- Nog support trolleys (replaces centre nail gun)
- Outfeed conveyor systems
- Nail guns can be stick or coil types (not included with the machine)
